Suspended Ceilings

What is a suspended ceiling?

A suspended ceiling is a secondary ceiling hung below the structural soffit of a building, supported by a metal grid that is fixed back to the slab or steelwork above with hangers. The space between the structural soffit and the finished ceiling (the void) is used to run services such as ductwork, pipework, sprinklers, cable trays and luminaires, while the visible underside provides a uniform finish that can be specified for acoustic absorption, fire performance, hygiene, light reflectance and aesthetic. Suspended ceilings are the default in commercial buildings because they make services accessible for maintenance, allow lighting and ventilation to be integrated cleanly into a coherent grid, and let designers use a single system to address the acoustic, fire and visual requirements of large floorplates. Almost every commercial sector (offices, education, healthcare, retail, leisure, industrial) uses suspended ceilings somewhere in the building.

When suspended ceilings make sense

Suspended ceilings are typically the right answer in any commercial environment where services need to be hidden, services need to be accessible, and acoustics need to be managed. In offices, they conceal lighting, supply and extract air, sprinkler runs and structured cabling, and a removable tile system means a single facilities operative can lift a tile to access anything above. In schools and colleges, they handle the high-traffic, high-volume acoustic environment of classrooms, corridors and assembly halls and meet education-sector acoustic targets. In healthcare and laboratories, hygienic and washable systems protect against airborne contamination and meet infection-control standards. In retail rollouts, they unify lighting and brand colour temperature across hundreds of stores. In industrial and automotive welfare, mezzanine and showroom areas, they bring a finished commercial standard to spaces that would otherwise have an exposed services soffit.

There are buildings and rooms where suspended ceilings are the wrong choice: exposed services aesthetics in modern offices, monolithic plaster finishes in heritage spaces, sloped or vaulted ceilings where bespoke joinery is preferred. But for the majority of standard commercial work, the question is which suspended ceiling system to use, not whether to use one. We start every brief by clarifying the project's acoustic, fire, hygiene, integration and aesthetic priorities before recommending the system that resolves them at the right cost.

The systems we install

MF ceilings

MF (metal furring) ceilings are concealed-grid plasterboard ceilings: a continuous, jointless plaster finish suspended below the structural soffit on a primary and cross-channel grid, finished with skim plaster and decorated. They are the system of choice where a flush, monolithic finish is required: meeting rooms, executive offices, lobbies, hotel reception areas, retail environments where the ceiling is a feature, and circulation spaces where exposed grid would visually compete with architectural detail. MF systems integrate with shadow-gap perimeter detailing, recessed luminaires, linear lighting and bulkheads, and are commonly fire-rated when specified with appropriate boards to a tested system document. We install with our in-house plasterers and dry-liners.

Concealed grid systems

Concealed grid systems combine the clean visual of an MF ceiling with the access of a tile system. Hooked or clip-in tiles sit into a hidden T-bar grid, leaving a tiled appearance with no visible suspension. They are used in offices and educational spaces where a refined finish is wanted but maintenance access is still needed. Concealed systems demand careful setting-out (perimeters, services penetrations and grid junctions are unforgiving) and a single tile lift typically requires a specific tool and a small amount of training. Specification is normally led by the architect's setting-out drawings.

Exposed grid mineral fibre

Exposed grid systems are the most common ceiling specification in UK commercial buildings: a visible 24 mm or 15 mm T-bar grid carrying square-edge or tegular mineral fibre tiles, almost always in a 600 × 600 mm or 1200 × 600 mm module. They give the best access of any system, the widest range of acoustic and fire performance, and the lowest installed cost per square metre. The grid finish (white, black, colour-matched), tile face (smooth, fissured, fine-textured) and edge detail (square, tegular 24, microlook 15) are all specifier choices. We install systems from Zentia (formerly Armstrong UK), Rockfon, Ecophon and others, including Zentia Ultima OP in 15 mm Silhouette grid with black reveal as recently delivered for Glenair in Mansfield, and Zentia Sierra and Bioguard tiles at Nottingham Trent University Clifton Campus.

Metal ceilings

Metal ceilings (perforated or plain steel and aluminium tiles, planks and bespoke panels) combine the access and grid logic of mineral fibre with a harder, more architectural finish. Common applications include lobbies, transport hubs, retail, leisure venues and any space where fire performance, durability or a particular geometry matters. Plank systems (linear tiles, often 100–300 mm wide and 1500 mm or longer) give a contemporary linear aesthetic; tile systems on standard grids deliver acoustic performance comparable to mineral fibre when backed with an acoustic fleece. Hunter Douglas 84R metal planks have been delivered by us in decagon shape for the BCA Birmingham auction hall: a bespoke geometry built from a standard system.

Timber and feature ceilings

Timber and feature ceilings cover linear timber, slatted timber, panelled timber and acoustic timber systems, installations where the ceiling is part of the architecture rather than just a service plenum. They appear in higher-specification spaces: university teaching and social areas, museums, galleries, premium retail, hotels, restaurants, automotive showrooms and corporate reception areas. Lead times are longer than for mineral fibre because most systems are made to order against project drawings, so early specification commitment matters. We have installed Hunter Douglas solid linear timber for the Aston Student Union ground floor and the British Geological James Hutton Building, and Décor feature timber ceilings at the University of Nottingham.

Acoustic suspended ceilings

Acoustic suspended ceilings are specified where reverberation control is the primary driver: open offices, classrooms, large meeting rooms, hospital corridors, sports halls, restaurants, auditoria. The system can be a high-performance acoustic tile in a standard exposed grid (Class A absorption with αw values typically 0.85–1.00), or a separate acoustic intervention suspended below or alongside a base ceiling (rafts, baffles, clouds and panels). We install Ecophon Solo Rectangle rafts, Ecophon acoustic baffles and Ecophon Master tile systems regularly, including over 900 Ecophon Solo baffles delivered for Glenair's factory in Mansfield, Ecophon Solo rafts at Aston Student Union, Solo Rectangle rafts at Northampton Museum and Art Gallery, and Ecophon acoustic rafts and baffles in offices and corridors at Pioneer Park Dock 2 in Leicester. Where the brief is led by acoustics we work with the manufacturer's technical team to model the room and specify the right combination of products before procurement.

Compliance and standards

Suspended ceilings are governed by a stack of overlapping standards, and the right specification depends on the building's use class, occupancy and risk profile. Reaction-to-fire of constituent products is tested under EN 13501-1 (Euroclass A1, A2-s1,d0 and so on) and the membrane fire performance of complete ceiling assemblies (including grid, hangers, perimeter trim and tile) is tested to BS 476: Part 23 in the UK and BS EN 1364-2 across Europe. Specifying a "fire-rated tile" without considering the assembly is a common error: the rating only stands when the tested system is built as documented.

In schools and post-16 education, Building Bulletin 93 sets the acoustic targets ceilings must contribute to, including reverberation time and indoor ambient noise levels by space type. In healthcare, the NHS Health Technical Memoranda set hygiene, infection-control and washability requirements that drive selection toward sealed, vinyl-faced or metal tiles in clinical zones. BREEAM credits for indoor environment and health and wellbeing, and WELL standard sound concept features, both reference acoustic performance that ceilings contribute to substantially.

Where a project requires a particular fire, acoustic or hygiene rating, we work to the approved manufacturer system document for that exact assembly, follow the FIS Site Guide for installation tolerances and benchmarks, and where the specifier requires it, we provide ceiling-by-ceiling system reference data for inclusion in the building's O&M manual.

Sectors we deliver suspended ceilings for

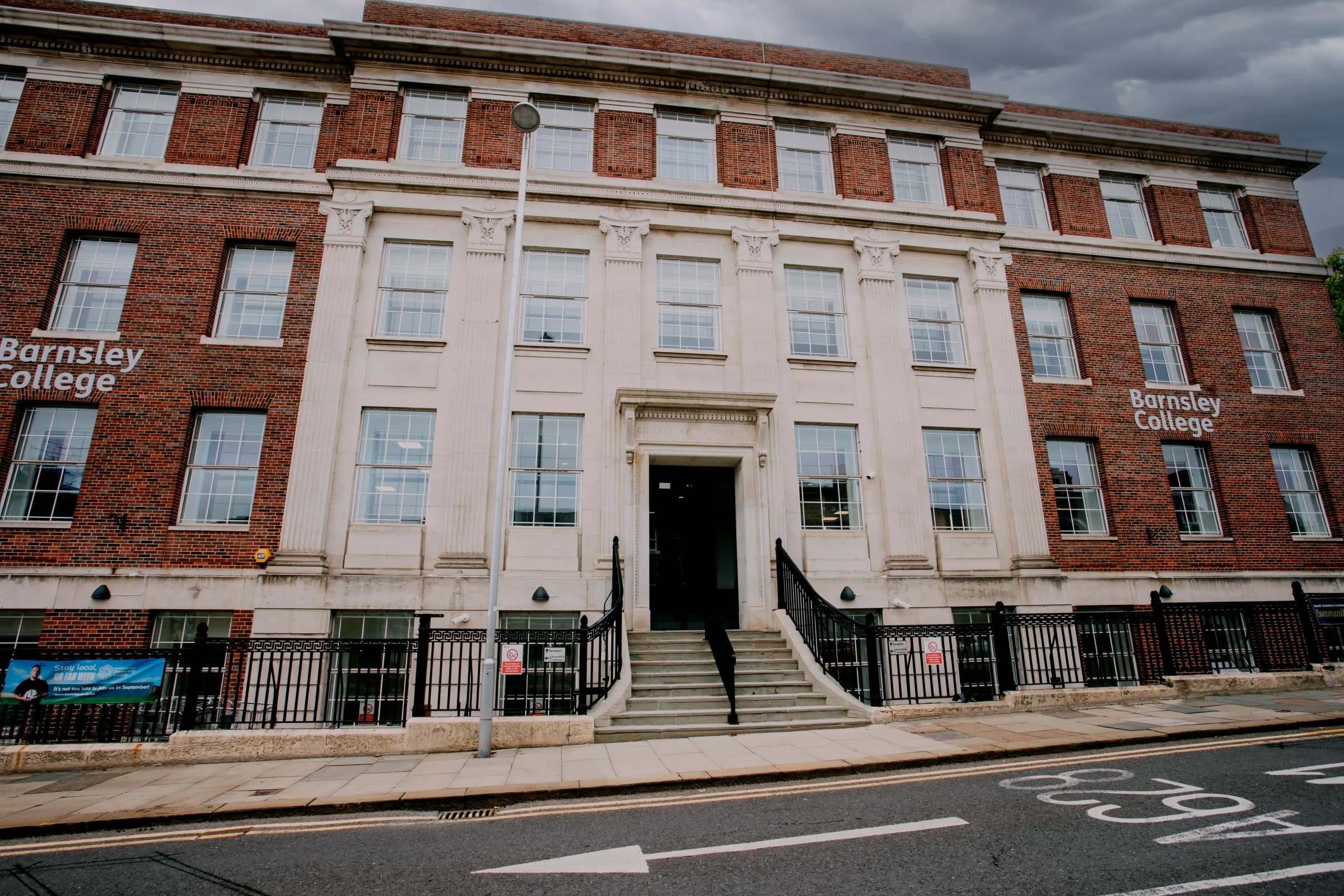

In education, we have delivered suspended ceilings and acoustic systems at Aston Student Union in Birmingham, the University of Nottingham, Nottingham Trent University Clifton Campus, Barnsley College, and Charnock Hall School in Sheffield: work spanning large lecture and circulation spaces, seminar rooms, kitchenettes and labs, and feature ceilings in social areas.

In offices, our ceiling work includes the Glenair offices in Mansfield (Zentia Ultima OP) and offices at Pioneer Park Dock 2 in Leicester, the bread-and-butter of the commercial fit-out market.

In industrial environments, we install ceilings to office, welfare and customer-facing zones inside warehouses and factories, and we have delivered over 900 Ecophon Solo baffles in the production hall at Glenair.

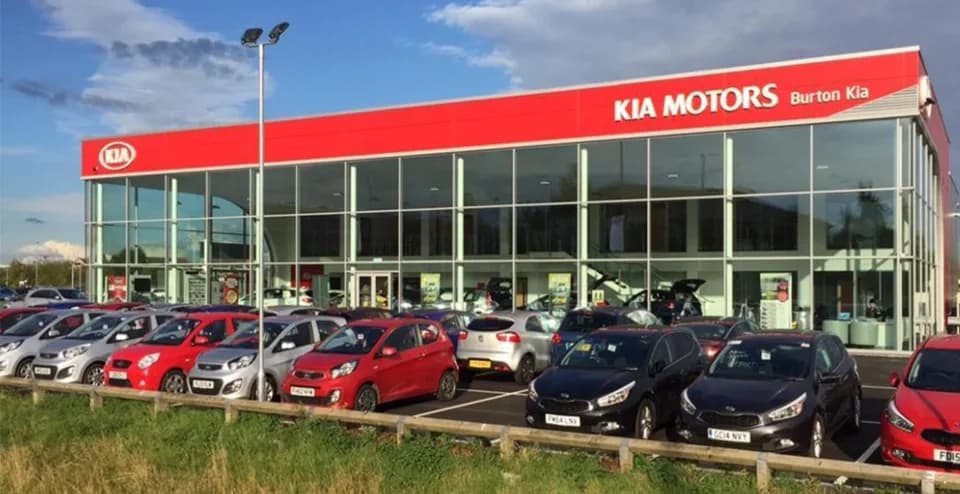

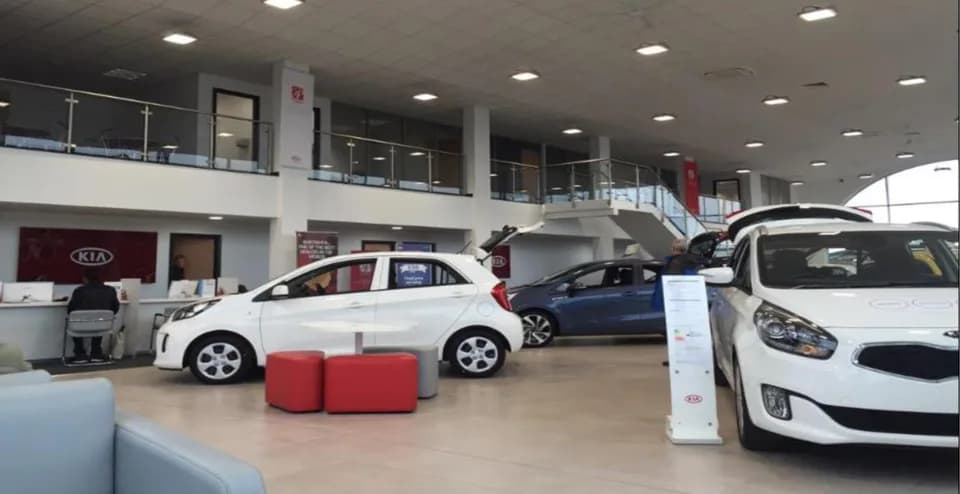

In automotive, the Kia Showroom in Burton-on-Trent involved Dune 600 × 600 ceilings sloped through the showroom.

In retail and leisure, our ceiling work supports shop-fit and gym fit-out programmes, including The Gym Group at Hendon delivered with main contractor Kingfisher Construction.

In cultural environments, the Northampton Museum and Art Gallery installation included Ecophon Solo Rectangle rafts in the shoe gallery and café and Hunter Douglas Heartfelt to the main walkway: a higher-specification acoustic and material brief than a standard commercial scope.

Why Eastledge for suspended ceilings

We have been installing commercial ceilings since 1986, working from our Derby head office and operating across the UK. We employ our own fixers, supervisors and dry-liners directly rather than relying on rotated subcontracted crews, which means consistent quality, accountable supervision and the same faces on site from week one to handover. We programme ceilings into the wider fit-out sequence rather than as an isolated trade: sequencing around M&E first-fix, lighting, sprinklers and ductwork tests so that the grid drops into a coordinated services layout instead of dictating to it. We have repeat-work relationships with main contractors including GF Tomlinson and Kingfisher Construction, and direct client retainers across education, industrial, automotive, retail and cultural sectors. Specification is always system-led: we work to the manufacturer's tested assemblies, install to FIS Site Guide tolerances, and provide system reference data on request.

Recent ceiling projects

Recent suspended ceiling work includes Glenair in Mansfield, where we installed Zentia Ultima OP in 15 mm Silhouette grid with a black reveal across the offices and over 900 Ecophon Solo acoustic baffles in the factory. At Nottingham Trent University's Clifton Campus we delivered 600 × 600 Zentia Sierra in seminar rooms with Zentia Bioguard tiles in kitchenettes, labs and WCs. At Aston Student Union in Birmingham we combined Ecophon Solo rafts sloped to roof in social space with a Hunter Douglas solid linear timber ceiling to the ground floor. At Charnock Hall School in Sheffield we installed a sloped suspended ceiling in Zentia Dune 600 × 600 square edge. At Pioneer Park Dock 2 in Leicester we installed Ecophon acoustic rafts to offices and acoustic baffles to corridors.

Suspended ceiling installation across the UK

Although our head office is in Alvaston, Derby, we deliver suspended ceiling installations across the United Kingdom. Recent ceiling work has reached Birmingham (Aston Student Union, BCA Auction Hall), Mansfield (Glenair offices and factory), Nottingham (University of Nottingham timber ceilings), Sheffield (Charnock Hall School), Leicester (Pioneer Park Dock 2), Burton-on-Trent (Kia Showroom), Northampton (Museum and Art Gallery), Keyworth in Nottinghamshire (British Geological James Hutton Building), Barnsley (Barnsley College) and Hendon, North London (The Gym Group). We mobilise from the Midlands and self-deliver to most regions for site meetings and surveys at short notice. Our city-specific service pages, for our priority regions including London, Birmingham, Manchester, Leeds, Sheffield, Nottingham, Leicester, Bristol and Glasgow, set out coverage and recent work in more detail.

Specialist ceiling types

Our suspended ceiling service encompasses five specialist ceiling disciplines, each with a dedicated page covering systems, performance specification and application:

• Acoustic Rafts & Baffles: Suspended absorbers for open plenums and exposed-services environments where a grid system cannot be installed.
• Acoustic Panelling: Wall-mounted absorption panels for reverberation control in offices, gyms, education and hospitality spaces.
• Timber Ceilings: Linear, slatted and panelled timber systems for warmth, scale and acoustic quality in education, cultural and corporate environments.
• Metal Ceilings: Plank, tile and bespoke metal systems for high-traffic, automotive and architectural interiors.
